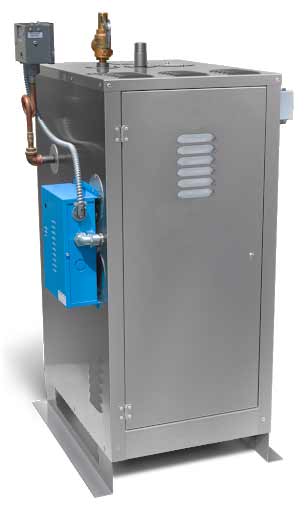

We manufacture electric steam boilers for industrial applications. Our electric steam boilers have various advantages including automatic temperature control, wide pressure ranges from 0.4Mpa to 1.25Mpa, pollution free and quiet operation and simple to install and operate. These industrial electric boilers are designed in both horizontal and vertical designs and offer various safety features such as protection from low water level, over temperature, over current and short circuit etc. Each unit is ruggedly design for long life successful operation without need of maintenance. We use only imported and branded electric components which ensure you reliable performance for long years.
Features
- Fully automatic operation
- Automatic temperature control system
- PLC based touch screen controller is optional
- Steam pressure available in 0.4Mpa, 0.7Mpa, 1.0Mpa and 1.25 Mpa
- Only branded and imported electrical components are used
- Highly energy efficient operation
- Simple to install, operate and maintain
- Pollution free and quiet operation
TECHNICAL SPECIFICATIONS
| Model | ESB0.3-0.7 | ESB0.5-0.7 | ESB1.0-1.0 | ESB2.0-1.25 |
| Rated steam output | 0.3 | 0.5 | 1 | 2 |
| Saturated steam pressure | 0.7 | 0.7 | 1 | 1.25 |
| Supply water | 20 | 20 | 20 | 20 |
| Electric Panel | 800*460*1900 | 800*800*2200 | 800*1000*2200 | 800*1000*2200 |
| Heater | Stainless steel tube type heater | |||
| Power supply | 380 Volts 50Hz Three Phase | |||
| Protection |
|
|||
| Designs available | Horizontal and Vertical | |||
| Optional | PLC based controller w/ touch screen display | |||
